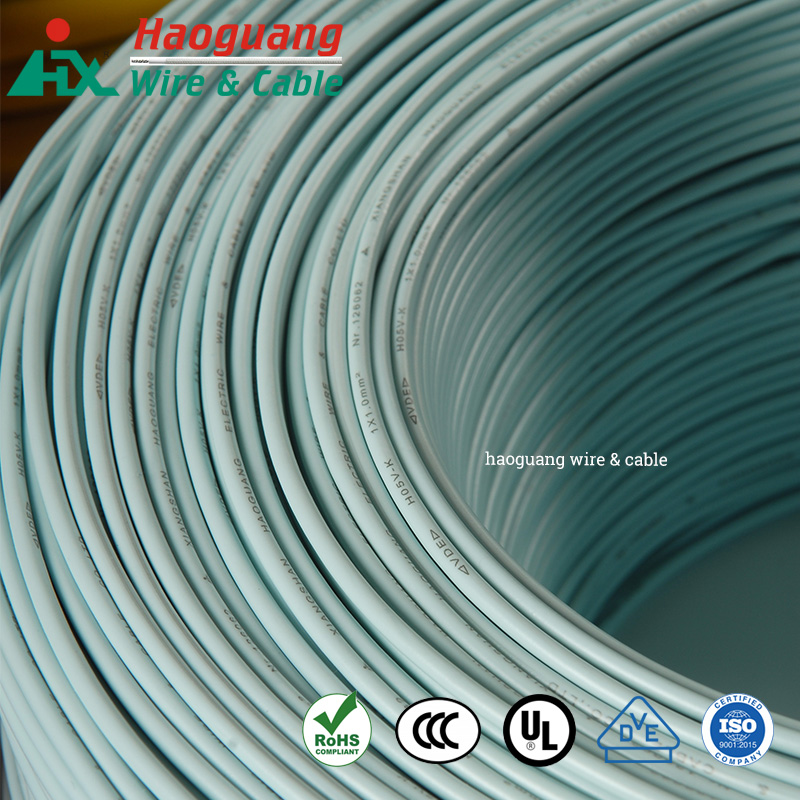

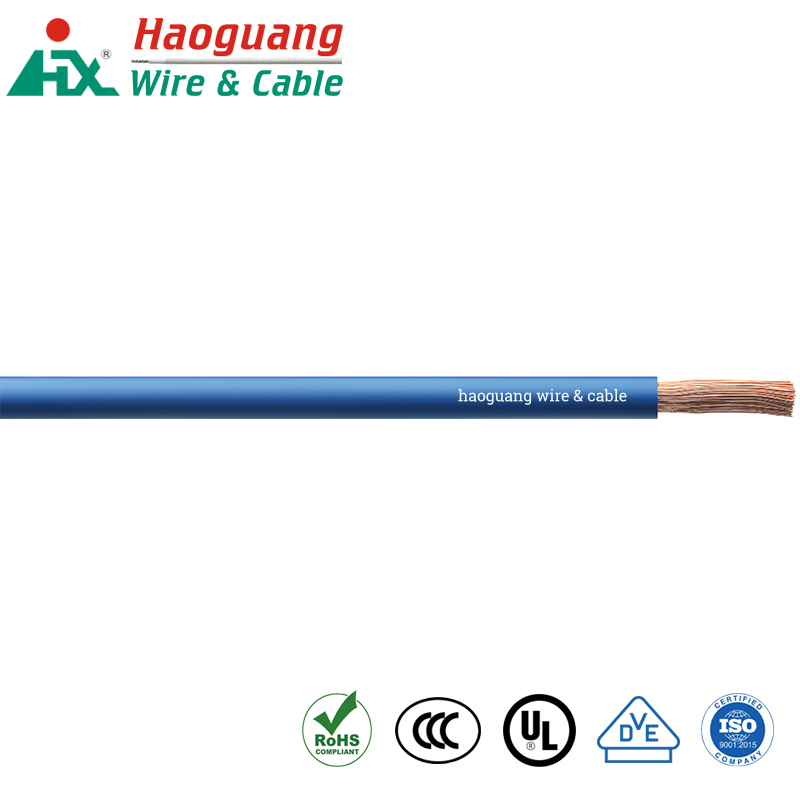

H05V-K unbraided non-sheathed PVC insulated vde certificate control cable has been specially designed for installations that require a flexible cable due to the complex domestic wiring,cabinets and lighting.It may also be used for equipment wiring,internal wiring of devices, distributors, control cabinets,electronic equipment,panels and others. Available in all sizes and a range of various colours.
Haoguang H05V-K cable has been specially designed for installations that require a flexible cable due to the complex domestic wiring,cabinets and lighting.It may also be used for equipment wiring,internal wiring of devices, distributors, control cabinets,electronic equipment,panels and others. Available in all sizes and a range of various colours.
2.Product Parameter of H05V-K unbraided non-sheathed PVC insulated vde certificate control cable
Rated Voltage: 300V/500V
Rated Temperature: ＋70℃
Type
Conductor
Insulation Conductor
Electrical Characteristic
Nominal Area
mm
Structure of Conductor
No./mm
Insulation Thickness
mm
Overall Diameter
(mm)
Conductor Resistance at 20 ℃ Max
Min
Max
Ω／km
H05V-U
0.5
1/0.80
0.6
1.9
2.3
36
0.75
1/0.98
0.6
2.1
2.5
24.5
1.0
1/1.13
0.6
2.2
2.7
18.1
H05V-K
0.5
28/0.15
0.6
2.1
2.5
39.0
16/0.20
0.75
24/0.20
0.6
2.2
2.7
26.0
42/0.15
1.0
32/0.20
0.6
2.4
2.8
19.5
Standard: DIN EN50525
3. Product Feature of H05V-K unbraided non-sheathed PVC insulated vde certificate control cable
1) Materials: Stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: Flexible Extruded Polyvinyl Chloride ( PVC）.
4. Product Details of H05V-K unbraided non-sheathed PVC insulated vde certificate control cable
1) Conditionally resistant to water oils,dyes,acids,Ozone.
2) High resistance to many different chemical substances chemical resistant.
3) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
4) Test method: UL VW-1 Vertical flame test.
5) RoHS compliant, UL listed.
6) Neither cracking at the high temperature, nor would turn hard in the cold.
5. Packaging & Delivery
1) Packaging Details:
Roll, Plastic reel/spool, Carton box
2) Port: Ningbo,Shanghai
3) Delivery: By Sea, By Air, By express.
6. FAQ:
1) Why PVC insulation ?
Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations. They are available in a number of sizes, colors and conductor materials. PVC properties make it suitable for applications where the cables may be exposed to extremely high or low temperatures, providing protection against degradation.
2) Could we provide the free sample for customer?
Yes, we could provide the free sample for customer for checking.
3) What is your payment method?
We usually receive payment by T/T 30% in advance, the balance before picking up the goods.
