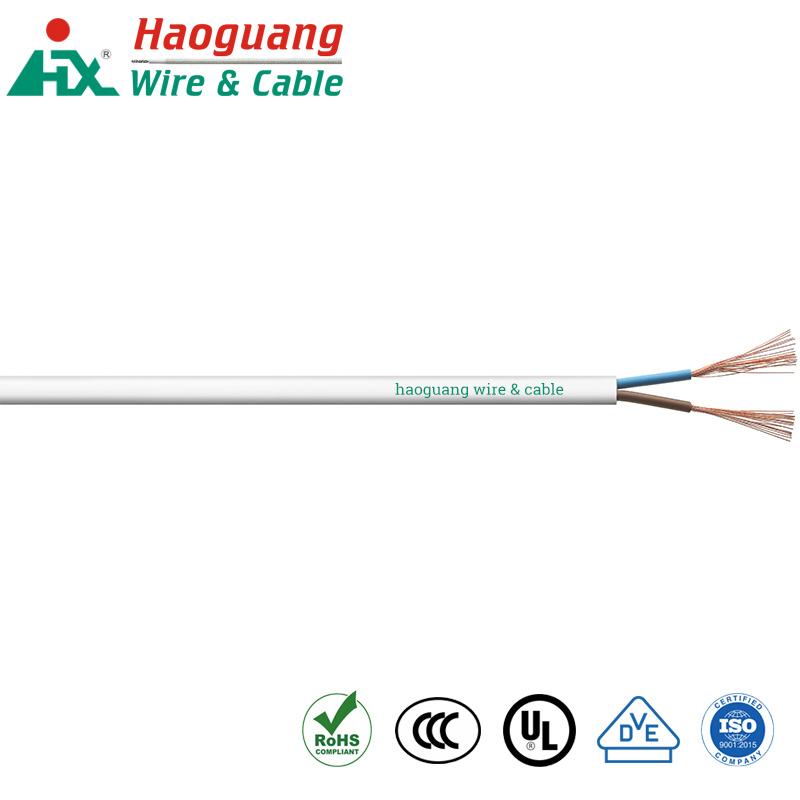

Haoguang 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable is suitable for the household appliances, plant and machinery,wiring purpose and for manufacturing cords.The outer sheath provided here is special PVC,self-extinguishing and flame retardant. Bare copper, fine wire conductor, there’re 2 cores and 3 cores options for you. Rated voltages is 300/300V.
1.Introduction of 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable
Haoguang 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable is suitable for the household appliances, plant and machinery,wiring purpose and for manufacturing cords.The outer sheath provided here is special PVC,self-extinguishing and flame retardant.The outer PVC jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting.
2.Product Parameter (Specification) of 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable
Rated Voltage: 300/300V
Rated Temperature: 70℃
Standard: GB/T5023.5
|
Size No. x mm2 |
Structure of Conductor No./mm |
Insulation Thickness mm |
Sheath Nominal Thickness mm |
Outside Diameter (mm) |
Insulation Resistance at 70 ℃ Max |
|
|
Min |
Max |
MΩ. km |
||||
|
2 x 0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 |
5.9 |
0.012 |
|
28/0.15 |
3*4.9 |
3.7*5.9 |
||||
|
2 x 0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.010 |
|
42/0.15 |
3.2*5.2 |
3.8*6.3 |
||||
|
3 x 0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.012 |
|
28/0.15 |
||||||
|
3 x 0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
0.010 |
|
42/0.15 |
||||||
3 Product Feature of the 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable
1) Conductor: Flexible stranded bare copper wire.
2) Insulation: PVC.
3) Jacket: PVC.
4 Product detail of the 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable
1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Outstanding resistance to abrasion, deformation.
4) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) IEC member including ?
Algeria, Argentina, Australia, Austria, Belarus, Belgium, Brazil, Bulgaria, Canada, Chile, China, Columbia, Croatia, Czech Republic, Denmark, Egypt, Finland, France, Germany, Greece, Hungary, India, Indonesia, Iran, Iraq, Ireland, Israel, Italy, Japan, Korea Republic of (South Korea), Libya, Luxembourg, Malaysia, Mexico, Netherlands, New Zealand, Norway, Oman, Pakistan, Philippines, Poland, Portugal, Qatar, Romania, Russian Federation, Saudi Arabia, Serbia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Thailand, Turkey, Ukraine, United Arab Emirates, United Kingdom, United States of America…
2) When I want customized 3C 60227 IEC 52 (RVV) PVC Insulated Multi Core Cable, how to do ?
We have professional service team, OEM & customized service is welcome. Drawings / samples are required.
3) What certifications do you have?
UL VDE CCC ROHS REACH
