Product Description

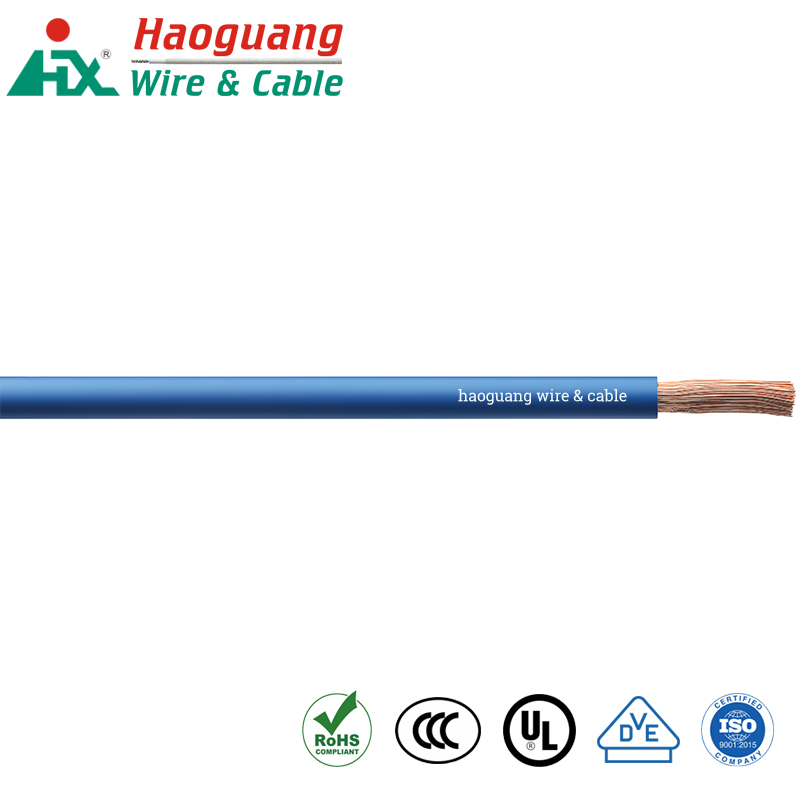

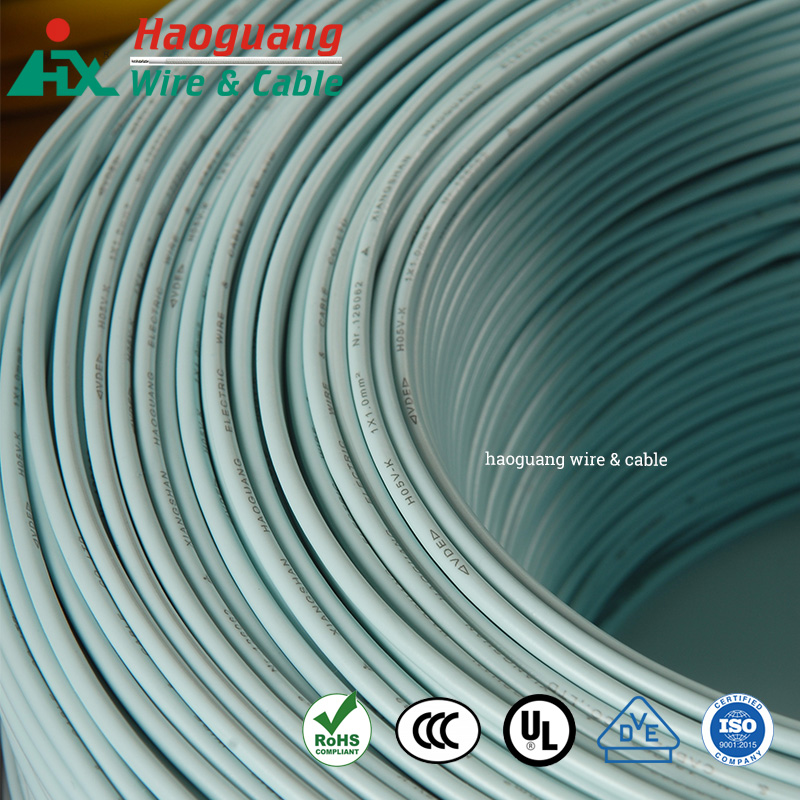

1.Product Introduction of H05V-K H05V-U VDE Approved hook-up PVC Single Core Cable

H05V-K and H05V-U VDE approved hook-up PVC single core cable is designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Application: Interconnection in electrical equipment, lighting devices and systems,meter.

2.Product Parameter (Specification) of H05V-K H05V-U VDE Approved hook-up PVC Single Core Cable

Rated Voltage: 300/500V
Rated Temperature: ＋70℃
Standard: DIN EN50525

Type	Conductor		Insulation Conductor			Electrical Characteristic
	Nominal Area mm	Structure of Conductor No./mm	Insulation Thickness mm	Overall Diameter (mm)		Conductor Resistance at 20 ℃ Max
				Min	Max	Ω／km
H05V-U	0.5	1/0.80	0.6	1.9	2.3	36
	0.75	1/0.98	0.6	2.1	2.5	24.5
	1.0	1/1.13	0.6	2.2	2.7	18.1
H05V-K	0.5	28/0.15	0.6	2.1	2.5	39.0
		16/0.20
	0.75	24/0.20	0.6	2.2	2.7	26.0
		42/0.15
	1.0	32/0.20	0.6	2.4	2.8	19.5

3 Product Feature of the H05V-K H05V-U VDE Approved hook-up PVC Single Core Cable

1) Materials: Stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: Flexible Extruded Polyvinyl Chloride ( PVC）.

4 Product detail of the H05V-K H05V-U VDE Approved hook-up PVC Single Core Cable

2) High resistance to many different chemical substances chemical resistant.
3) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
5) RoHS compliant,
7) Brand: Haoguang.

5 Packaging & Delivery

1) Packaging Details:

It is determined by the quantity and requirements you purchase. Can be negotiated.

2) Port: Ningbo

Delivery: By Sea, By Air, By express.

6 FAQ:

1) Why PVC insulation ?

Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations. They are available in a number of sizes, colors and conductor materials. PVC properties make it suitable for applications where the cables may be exposed to extremely high or low temperatures, providing protection against degradation.

2) Could we provide the free sample for customer?

Yes, we could provide the free sample for customer for checking.

3) What is your payment method?

We usually receive payment by T/T 30% in advance, the balance before picking up the goods.
