Product Description

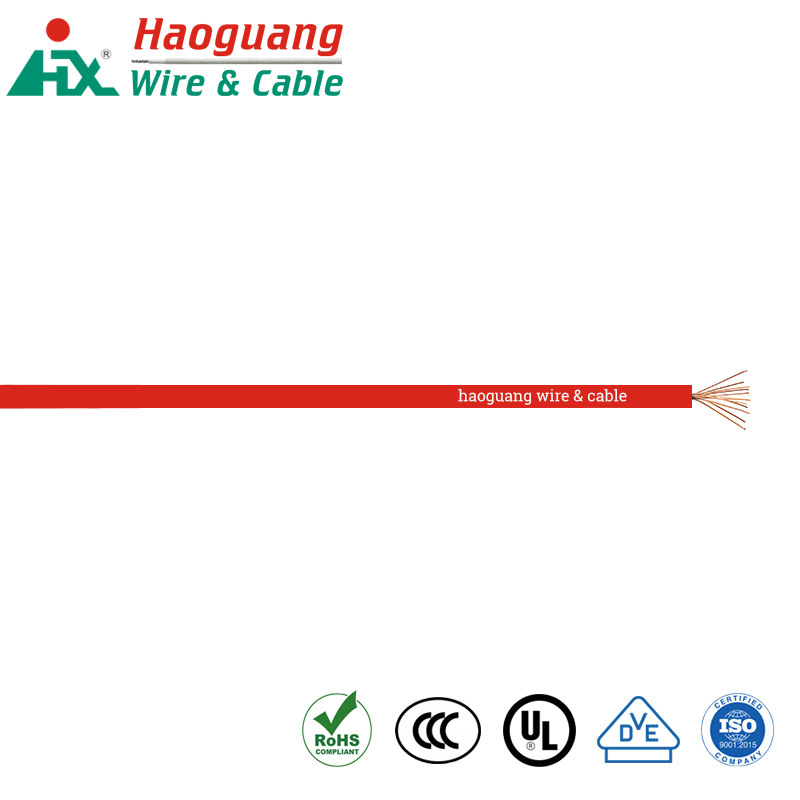

1.Introduction of UL 1569 PVC Insulation Single Core Cable

UL 1569 PVC Insulation Single Core Cable can be used for internal wiring of electrical equipment. It passed flame test. The conductor is bare copper or tin-coated. Size spec from 16AWG to 30AWG.

Application:
This cable are suitable for internal wiring of switchboards, electronic and electrical equipment, e.g. households, radio,televisions,monitor and control desks,electronic circuits.

2.Parameter (Specification) of UL 1569 PVC Insulation Single Core Cable

Rated Voltage: 300V
Rated Temperature: ＋105℃
Standard: UL758

Spec. AWG	Structure of Conductor No./mm	Insulation Thickness mm	Overall Diameter (mm)	Conductor Resistance at 20 ℃ Max
26	7/0.16	0.38	1.3	150
24	12/0.15	0.38	1.4	94.2
22	18/0.15	0.38	1.55	59.4
20	30/0.15	0.38	1.75	36.7
18	47/0.15	0.38	2.0	23.2
16	42/0.2	0.38	2.3	14.6

3.Feature of the UL 1569 PVC Insulation Single Core Cable

1) Materials: bare copper , flexible tinned copper.
2) Insulation: Extruded PVC. Extinguishing and Flame retardant.
3)Excellent aging resistance, even under extreme conditions.

4.Detail of the UL 1569 PVC Insulation Single Core Cable

2) Heat resistant.
3) High resistance to many different chemical substances chemical resistant.
4) Standard sizes and custom color available upon request.
5) Test method: UL VW-1 Vertical flame test.
6) Test Voltage:3000V
7) Temperature Range: -15℃ to +105℃.
8) Brand: Haoguang.

5 Packaging & Delivery

1) Packaging Details:

It is determined by the quantity and requirements you purchase. Can be negotiated.

2) Port: Ningbo

Delivery: By Sea, By Air, By express.

6 FAQ:

1) What is your lead time ?

Generally 3 days for in stock cables and 10-15 days for customized cables.

2) Can I order the wire/cable which is lower than your MOQ ?

It depends. First, we will check the warehouse.if it is in stock, sure, it’s ok! If it is much less than MOQ, maybe we will take it as a sample order, the price will be different.

3) Is the quality of UL 1569 PVC Insulation Single Core Cable guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
