Product Description

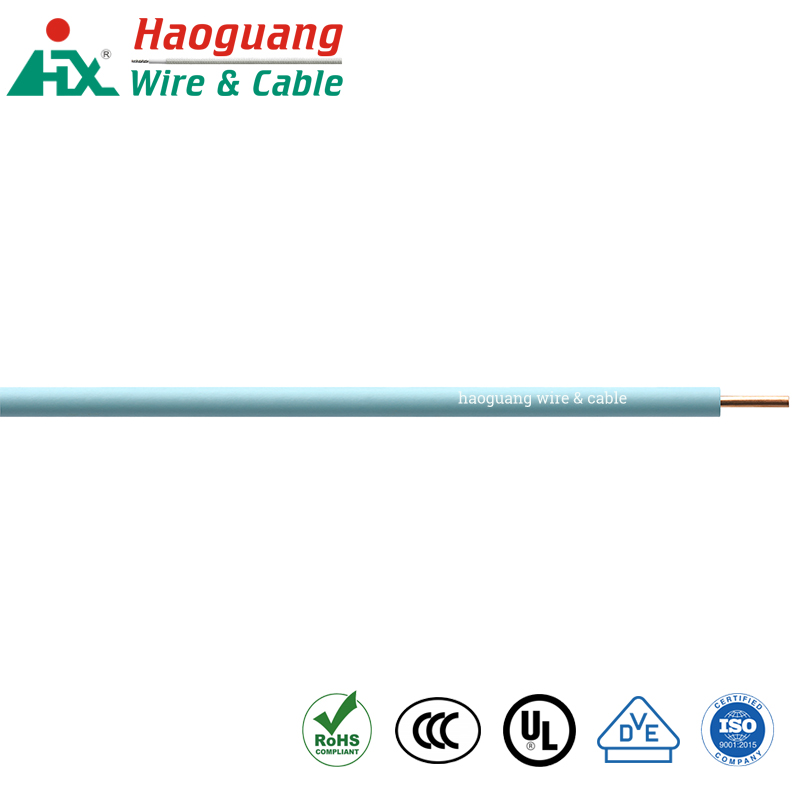

1.Introduction of 60227 IEC 05 06 BV RV PVC Single Core Cable for Fixed Wiring

Haoguang 60227 IEC 05 06 BV RV PVC Single Core Cable for Fixed Wiring is often used for the connection of indoor instrument and electrical equipment. Rated for continuous use up to 70 or 90 ℃, voltage up to 300/500V. It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality.

2.Parameter (Specification) of 60227 IEC 05 06 BV RV PVC Single Core Cable for Fixed Wiring

Rated Voltage: 300V/500V
Rated Temperature: ＋70℃ 60227IEC05(BV), 60227IEC06(RV)
Rated Temperature: ＋90℃ 60227IEC07(BV-90), 60227IEC08(RV-90)
Standard: GB/T5023.3

Type	Conductor		Insulation Conductor			Electrical Characteristic
	Nominal Area mm	Structure of Conductor No./mm	Insulation Thickness mm	Overall Diameter (mm)		Conductor Resistance at 20 ℃ Max
				Min	Max	Ω／km
60227IEC05(BV)	0.5	1/0.80	0.6	1.9	2.3	39
	0.75	1/0.98	0.6	2.1	2.5	26
	1.0	1/1.13	0.6	2.2	2.7	19.5
60227IEC06(RV)	0.5	28/0.15	0.6	2.1	2.5	39.0
		16/0.20
	0.75	24/0.20	0.6	2.2	2.7	26.0
		42/0.15
	1.0	32/0.20	0.6	2.4	2.8	19.5
60227IEC07(BV-90)	0.5	1/0.80	0.6	1.9	2.3	39
	0.75	1/0.98	0.6	2.1	2.5	26
	1.0	1/1.13	0.6	2.2	2.7	19.5
	1.5	1/1.38	0.7	2.6	3.2	13.3
	2.5	1/1.78	0.8	3.2	3.9	7.98
60227IEC08(RV-90)	0.5	28/0.15	0.6	2.8	3.4	39.0
		16/0.20
	0.75	24/0.20	0.6	3.4	4.1	26
		42/0.15
	1.0	32/0.20	0.6	3.9	4.8	19.5
	1.5	48/0.20	0.7	4.4	5.3	13.3
		30/0.25
	2.5	51/0.25	0.8	5.7	6.8	7.98

3.Feature of the 60227 IEC 05 06 BV RV PVC Single Core Cable for Fixed Wiring

1) Materials: Bare copper ,High precision non-oxygen tinned copper.
2) Insulation: PVC.

4.Detail of the 60227 IEC 05,06 BV RV PVC Single Core Wire for Fixed Wiring

1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation.
4) RoHS compliant.
5) Brand: Haoguang.

5 Packaging & Delivery

1) Packaging Details:

It is determined by the quantity and requirements you purchase. Can be negotiated.

2) Port: Ningbo

Delivery: By Sea, By Air, By express.

6 FAQ:

1) PVC VS PVC CABLE INSULATION ?

Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations. They are available in a number of sizes, colors and conductor materials. PVC properties make it suitable for applications where the cables may be exposed to extremely high or low temperatures, providing protection against degradation.

2) Are you a manufactory?

Yes, our company is a professional wires and cables manufactory with many years of experience.

3) Does your company accept OEM production?

Yes.

4) What is IEC?

When the International Electrotechnical Commission (IEC) member countries and affiliate members are added together the IEC family covers more than 97% of the world’s population.
