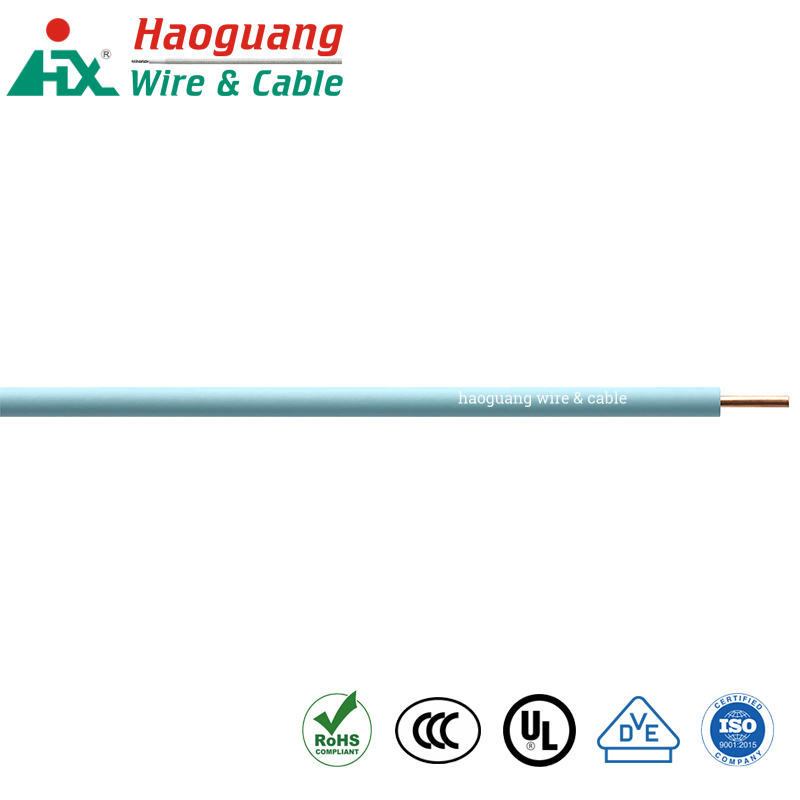

Haoguang 60227 IEC 05 06 BV RV PVC Normal Hook-up Wire is often used for the connection of indoor instrument and electrical equipment.Rated for continuous use up to 70 or 90 ℃, voltage up to 300/500V. The material is Eco-friendly and high quality. Welcome to inquiry.
1.Product Introduction of 60227 IEC 05 06 BV RV PVC Normal Hook-up Wire
Haoguang 60227 IEC 05 06 BV RV PVC Normal Hook-up Wires are often used for the connection of indoor instrument and electrical equipment. Rated for continuous use up to 70 or 90 ℃, voltage up to 300/500V. It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality.
2.Product Parameter (Specification) of 60227 IEC 05 06 BV RV PVC Normal Hook-up Wire
Rated Voltage: 300V/500V
Rated Temperature: ＋70℃ 60227IEC05(BV), 60227IEC06(RV)
Rated Temperature: ＋90℃ 60227IEC07(BV-90), 60227IEC08(RV-90)
Standard: GB/T5023.3
|
Type |
Conductor |
Insulation Conductor |
Electrical Characteristic |
|||
|
Nominal Area mm |
Structure of Conductor No./mm |
Insulation Thickness mm |
Overall Diameter (mm) |
Conductor Resistance at 20 ℃ Max |
||
|
Min |
Max |
Ω／km |
||||
|
60227IEC05(BV) |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39 |
|
0.75 |
1/0.98 |
0.6 |
2.1 |
2.5 |
26 |
|
|
1.0 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.5 |
|
|
60227IEC06(RV) |
0.5 |
28/0.15 |
0.6 |
2.1 |
2.5 |
39.0 |
|
16/0.20 |
||||||
|
0.75 |
24/0.20 |
0.6 |
2.2 |
2.7 |
26.0 |
|
|
42/0.15 |
||||||
|
1.0 |
32/0.20 |
0.6 |
2.4 |
2.8 |
19.5 |
|
|
60227IEC07(BV-90) |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39 |
|
0.75 |
1/0.98 |
0.6 |
2.1 |
2.5 |
26 |
|
|
1.0 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.5 |
|
|
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
13.3 |
|
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.98 |
|
|
60227IEC08(RV-90) |
0.5 |
28/0.15 |
0.6 |
2.8 |
3.4 |
39.0 |
|
16/0.20 |
||||||
|
0.75 |
24/0.20 |
0.6 |
3.4 |
4.1 |
26 |
|
|
42/0.15 |
||||||
|
1.0 |
32/0.20 |
0.6 |
3.9 |
4.8 |
19.5 |
|
|
1.5 |
48/0.20 |
0.7 |
4.4 |
5.3 |
13.3 |
|
|
30/0.25 |
||||||
|
2.5 |
51/0.25 |
0.8 |
5.7 |
6.8 |
7.98 |
|
3 Product Feature of the 60227 IEC 05 06 BV RV PVC Normal Hook-up Wire
1) Materials: Bare copper, High precision non-oxygen tinned copper.
2) Insulation: PVC.
4 Product detail of the 60227 IEC 05 06 BV RV PVC Normal Hook-up Wire
1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation.
4) RoHS compliant.
5) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) PVC VS PVC CABLE INSULATION ?
Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations. They are available in a number of sizes, colors and conductor materials. PVC properties make it suitable for applications where the cables may be exposed to extremely high or low temperatures, providing protection against degradation.
2) Are you a manufactory?
Yes, our company is a professional wires and cables manufactory with many years of experience.
3) Does your company accept OEM production?
Yes.
4) What is IEC?
When the International Electrotechnical Commission (IEC) member countries and affiliate members are added together the IEC family covers more than 97% of the world’s population.
