Haoguang UL AWM 1007 PVC RoHS Normal Hook-up Wire can be used for internal wiring of switchboards, electronic and electrical equipment. Its characteristics include tinned copper conductors, PVC insulation and a 300 volts rating, temperatures ranging up to 80°C. It passed flame test. Haoguang Cable provide support different kinds of cables for your application. Pls contact us to discuss your requirements.

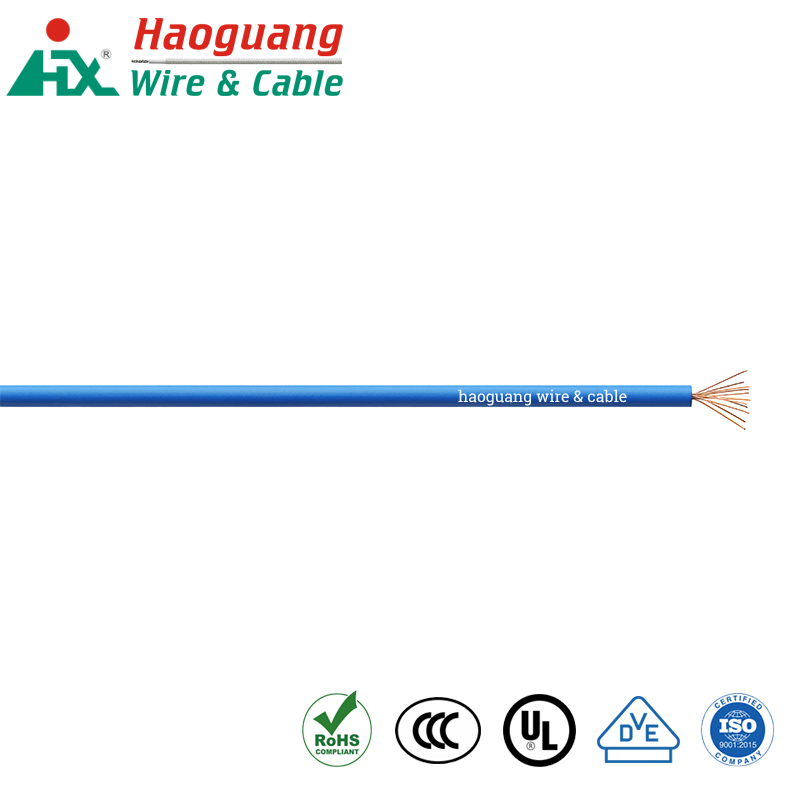

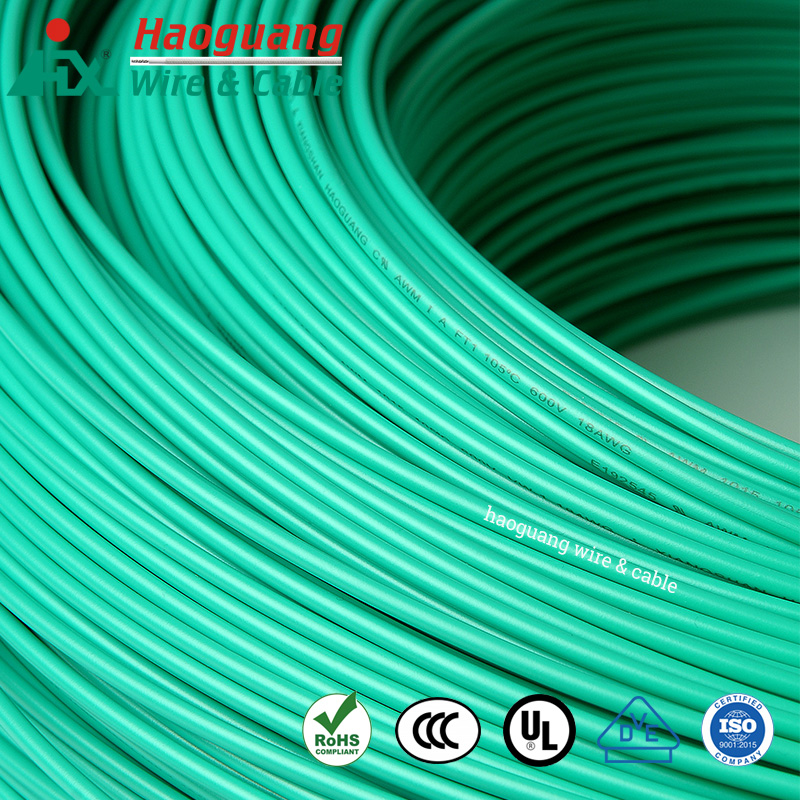

1.Introduction of UL AWM 1007 PVC RoHS Normal Hook-up Wire
UL AWM 1007 PVC RoHS Normal Hook-up Wire can be used for internal wiring of electrical equipment. It passed flame test. The conductor is bare copper or tin-coated. Size spec from 16AWG to 30AWG.
Application:
This cable/wire is suitable for internal wiring of switchboards, electronic and electrical equipment, e.g. households, radio,televisions,monitor and control desks.
2.Parameter (Specification) of UL AWM 1007 PVC RoHS Normal Hook-up Wire
Rated Voltage: 300V
Rated Temperature: 80℃
Standard: UL758
|
Spec. AWG |
Structure of Conductor No./mm |
Insulation Thickness mm |
Overall Diameter (mm) |
Conductor Resistance at 20 ℃ Max |
||||
|
Ω／km |
||||||||
|
26 |
7/0.16 |
0.38 |
1.3 |
150 |
||||
|
24 |
12/0.15 |
0.38 |
1.4 |
94.2 |
||||
|
22 |
18/0.15 |
0.38 |
1.55 |
59.4 |
||||
|
20 |
30/0.15 |
0.38 |
1.75 |
36.7 |
||||
|
18 |
47/0.15 |
0.38 |
2.0 |
23.2 |
||||
|
16 |
42/0.2 |
0.38 |
2.3 |
14.6 |
||||
3.Feature of the UL AWM 1007 PVC RoHS Normal Hook-up Wire
1) Materials: bare copper , flexible tinned copper.
2) Insulation: Extruded PVC, Flame retardant.
3)Temperature Range: -15℃ to +80℃.
4) Excellent aging resistance, even under extreme conditions
4.Detail of the UL AWM 1007 PVC RoHS Normal Hook-up Wire
2) Heat resistant.
3) High resistance to many different chemical substances chemical resistant.
4) Standard sizes and custom color available upon request.
5) Test method: UL VW-1 Vertical flame test.
6) Test Voltage:3000V
6) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) What’s your Minimum Order Quantity?
Pls contact us for detail information.
2) Can I order the wire/cable which is lower than your MOQ ?
It depends. First, we will check the warehouse.if it is in stock, sure, it’s ok! If it is much less than MOQ, maybe we will take it as a sample order, the price will be different.
3) Does your company accept OEM production?
Yes.
