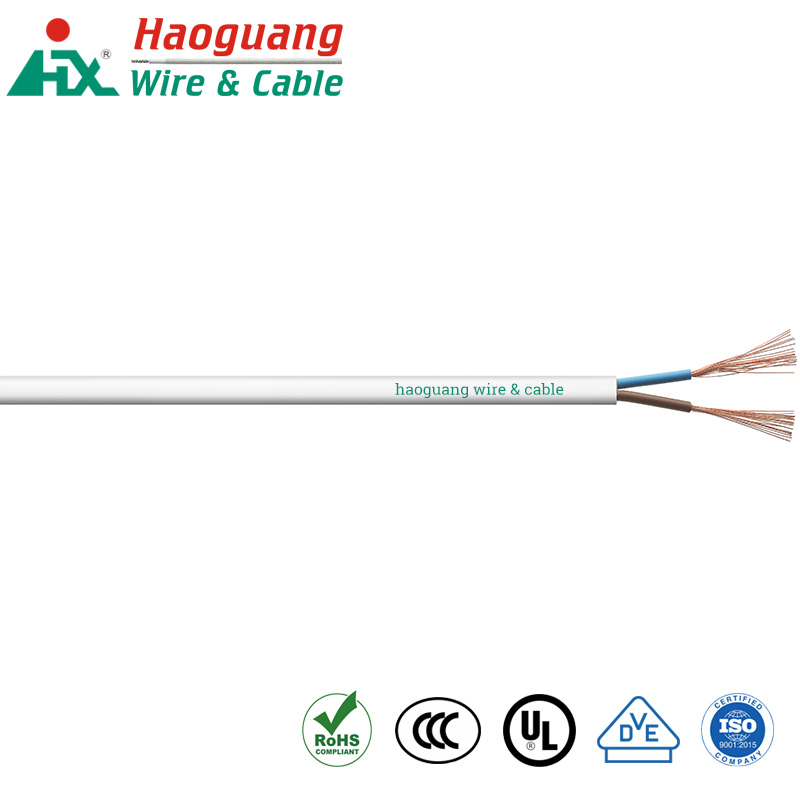

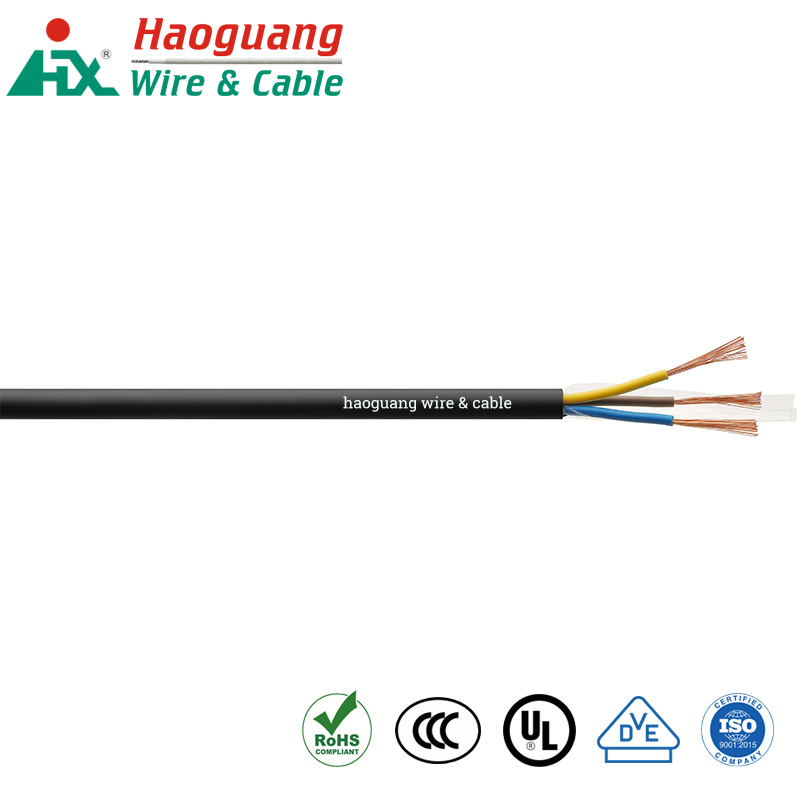

Haoguang AWM UL 20949 PVC Insulated Multi Core Cable is suitable for the household appliances.The outer sheath provided here is special PVC,self-extinguishing and flame retardant. Bare copper, fine wire conductor, there’re many different size options for you. Rated voltages is 600V.Welcome to inquiry.
1.Introduction of AWM UL 20949 PVC Insulated Multi Core Cable
Haoguang AWM UL 20949 PVC Insulated Multi Core Cable is suitable for the household appliances.The outer sheath provided here is special PVC,self-extinguishing and flame retardant. Bare copper, fine wire conductor, there’re many different size options for you. Rated voltages is 600V.
2.Parameter (Specification) of AWM UL 20949 PVC Insulated Multi Core Cable
Rated Voltage: 600V
Rated Temperature: 105℃
Standard: UL758
File No.: E192545
|
Spec AWG |
Insulation Nominal Thickness mm |
Insulation Min Thickness mm |
Sheath Nominal Thickness mm |
Sheath Min Thickness |
Outside Diameter |
|
mm |
mm |
||||
|
2 x 10# |
0.76 |
0.69 |
1.63 |
1.45 |
21.77 |
|
3 x 10# |
0.76 |
0.69 |
1.63 |
1.45 |
23.2 |
|
4 x 10# |
0.76 |
0.69 |
1.89 |
1.68 |
26.13 |
|
5 x 10# |
0.76 |
0.69 |
1.89 |
1.68 |
29.17 |
|
6 x 10# |
0.76 |
0.69 |
2.09 |
1.84 |
31.951 |
|
7 x 10# |
0.76 |
0.69 |
2.09 |
1.84 |
31.951 |
|
2 x 12# |
0.76 |
0.69 |
1.17 |
1.05 |
15.12 |
|
3 x 12# |
0.76 |
0.69 |
1.17 |
1.05 |
16.46 |
|
4 x 12# |
0.76 |
0.69 |
1.35 |
1.2 |
18.12 |
|
5 x 12# |
0.76 |
0.69 |
1.35 |
1.2 |
20.51 |
|
6 x 12# |
0.76 |
0.69 |
1.63 |
1.45 |
22.42 |
|
7 x 12# |
0.76 |
0.69 |
1.63 |
1.45 |
22.42 |
|
2 x 14# |
0.76 |
0.69 |
1.17 |
1.05 |
11.498 |
|
3 x 14# |
0.76 |
0.69 |
1.17 |
1.05 |
12.2 |
|
4 x 14# |
0.76 |
0.69 |
1.17 |
1.05 |
13.39 |
|
5 x 14# |
0.76 |
0.69 |
1.35 |
1.2 |
14.7 |
|
6 x 14# |
0.76 |
0.69 |
1.35 |
1.2 |
16.437 |
|
7 x 14# |
0.76 |
0.69 |
1.35 |
1.2 |
16.437 |
|
2 x 16# |
0.76 |
0.69 |
1.02 |
0.89 |
8.94 |
|
3 x 16# |
0.76 |
0.69 |
1.02 |
0.89 |
9.47 |
|
4 x 16# |
0.76 |
0.69 |
1.17 |
1.05 |
10.67 |
|
5 x 16# |
0.76 |
0.69 |
1.17 |
1.05 |
11.655 |
|
6 x 16# |
0.76 |
0.69 |
1.17 |
1.05 |
12.69 |
|
7 x 16# |
0.76 |
0.69 |
1.17 |
1.05 |
12.69 |
|
2 x 18# |
0.76 |
0.69 |
1.17 |
1.05 |
7.5 |
|
3 x 18# |
0.76 |
0.69 |
1.02 |
0.89 |
7.92 |
|
4 x 18# |
0.76 |
0.69 |
1.02 |
0.89 |
8.63 |
|
5 x 18# |
0.76 |
0.69 |
1.02 |
0.89 |
9.41 |
|
6 x 18# |
0.76 |
0.69 |
1.02 |
1.05 |
10.53 |
|
7 x 18# |
0.76 |
0.69 |
1.17 |
1.05 |
10.53 |
|
2 x 20# |
0.76 |
0.69 |
1.17 |
0.89 |
6.6 |
|
3 x 20# |
0.76 |
0.69 |
1.02 |
0.89 |
6.95 |
|
4 x 20# |
0.76 |
0.69 |
1.02 |
0.89 |
7.54 |
|
5 x 20# |
0.76 |
0.69 |
1.02 |
0.89 |
8.2 |
|
6 x 20# |
0.76 |
0.69 |
1.02 |
0.89 |
8.88 |
|
7 x 20# |
0.76 |
0.69 |
1.02 |
0.89 |
8.88 |
|
2 x 22# |
0.76 |
0.69 |
1.02 |
0.89 |
6.03 |
|
3 x 22# |
0.76 |
0.69 |
1.02 |
0.89 |
6.34 |
|
4 x 22# |
0.76 |
0.69 |
1.02 |
0.89 |
6.86 |
|
5 x 22# |
0.76 |
0.69 |
1.02 |
0.89 |
7.43 |
|
6 x 22# |
0.76 |
0.69 |
1.02 |
0.89 |
8.02 |
|
7 x 22# |
0.76 |
0.69 |
1.02 |
0.89 |
8.02 |
|
2 x 24# |
0.76 |
0.69 |
1.02 |
0.89 |
5.68 |
|
3 x 24# |
0.76 |
0.69 |
1.02 |
0.89 |
5.96 |
|
4 x 24# |
0.76 |
0.69 |
1.02 |
0.89 |
6.43 |
|
5 x 24# |
0.76 |
0.69 |
1.02 |
0.89 |
6.954 |
|
6 x 24# |
0.76 |
0.69 |
1.02 |
0.89 |
7.5 |
|
7 x 24# |
0.76 |
0.69 |
1.02 |
0.89 |
7.5 |
|
2 x 26# |
0.76 |
0.69 |
1.02 |
0.89 |
5.44 |
|
3 x 26# |
0.76 |
0.69 |
1.02 |
0.89 |
5.7 |
|
4 x 26# |
0.76 |
0.69 |
1.02 |
0.89 |
6.14 |
|
5 x 26# |
0.76 |
0.69 |
1.02 |
0.89 |
6.44 |
|
6 x 26# |
0.76 |
0.69 |
1.02 |
0.89 |
7.14 |
|
7 x 26# |
0.76 |
0.69 |
1.02 |
0.89 |
7.14 |
3.Feature of the AWM UL 20949 PVC Insulated Multi Core Cable
1) Conductor: Flexible stranded bare copper wire. Multi-conductor.
2) Insulation: PVC insulation.
3) Jacket: PVC sheath.
4) UL listed.
4.Detail of the AWM UL 20949 PVC Insulated Multi Core Cable
1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Outstanding resistance to abrasion, deformation.
4) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) Why use PVC sheath ?
Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations. They are available in a number of sizes, colors and conductor materials. PVC properties make it suitable for applications where the cables may be exposed to extremely high or low temperatures, providing protection against degradation
2) When I want customized AWM UL 20949 PVC Insulated Multi Core Cable, how to do ?
We have professional service team, OEM & customized service is welcome. Drawings / samples are required.
3) What about the lead time for bulk production?
Honestly, it depends on the order quantity and the season you place the order. Usually, delivery time is 7~15 days, we suggest that you start inquiry one months before the date you would like to get the products at your country.
