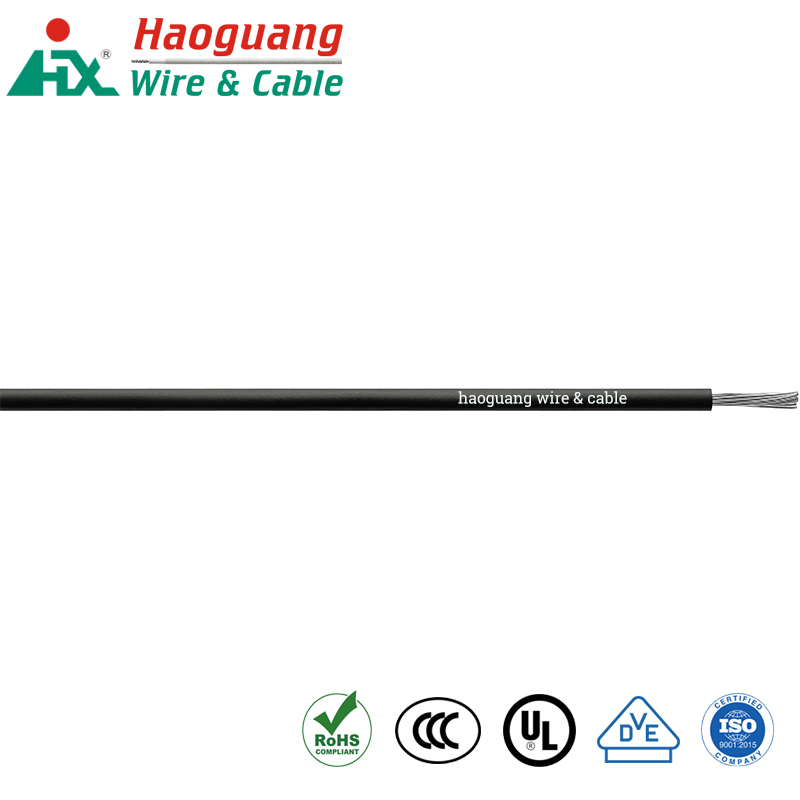

Haoguang LSZH AWM UL 3173 PE Single Core Cable is suitable for internal wiring of electric motor&generator,electronic,heating&cooling,lighting,switchgear and appliance applications. Rated for continuous use up to 125 ℃, voltage up to 600V. RoHS compliant and resistant to humidity. Welcome to inquiry.
1. Introduction of LSZH AWM UL 3173 PE Single Core Cable
Haoguang LSZH AWM UL 3173 PE Single Core Cable is suitable for internal wiring of electric motor&generator,electronic,heating&cooling,lighting,switchgear and appliance applications. Rated for continuous use up to 125 ℃, voltage up to 600V. Cross-linked polyethylene, Low Smoke Zero Halogen.RoHS compliant.
2.Parameter (Specification) of LSZH AWM UL 3173 PE Single Core Cable
Rated Voltage: 600V
Rated Temperature: ＋125℃
Standard: UL758
File No.:E192545
|
Spec. AWG |
Nominal Area mm2 |
Structure of Conductor No./mm |
Insulation Thickness mm |
Overall Diameter (mm) |
Conductor Resistance at 20 ℃ Max |
|
Ω／km |
|||||
|
24 |
0.205 |
12/0.15 |
0.76 |
2.2 |
94.2 |
|
7/0.20 |
|||||
|
22 |
0.324 |
18/0.15 |
0.76 |
2.4 |
59.4 |
|
7/0.254 |
|||||
|
20 |
0.519 |
28/0.15 |
0.76 |
2.5 |
36.7 |
|
7/0.30 |
|||||
|
18 |
0.823 |
26/0.20 |
0.76 |
2.8 |
23.2 |
|
7/0.39 |
|||||
|
16 |
1.31 |
42/0.20 |
0.76 |
3.1 |
14.6 |
|
28/0.25 |
|||||
|
7/0.495 |
|||||
|
14 |
2.08 |
41/0.254 |
0.76 |
3.6 |
8.96 |
|
7/0.62 |
3.Feature of the LSZH AWM UL 3173 PE Single Core Cable
1) Materials: High precision non-oxygen tinned copper.
2) Insulation: Cross-linked polyethylene, Low Smoke Zero Halogen.
4.Detail of the LSZH AWM UL 3173 PE Single Core Cable
1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation.
4) RoHS compliant, UL listed.
5) Fire and aging resistance.
6) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) What are the benefits of XLPE insulated cables ?
XLPE or Cross-linked polyethylene is a thermoset insulation material.Crosslinking polymers is a process which changes the molecular structure of the polymer chains so that they are more tightly bound together. Cross-linking the PE to become XLPE increases the temperature range of the insulation whilst maintaining the electrical properties
2) What certifications do you have?
Rohs, CE, CCC, UL, TUV,ISO9001.
3) Are you a manufactory?
Yes, our company is a professional wires and cables manufactory with many years of experience.
