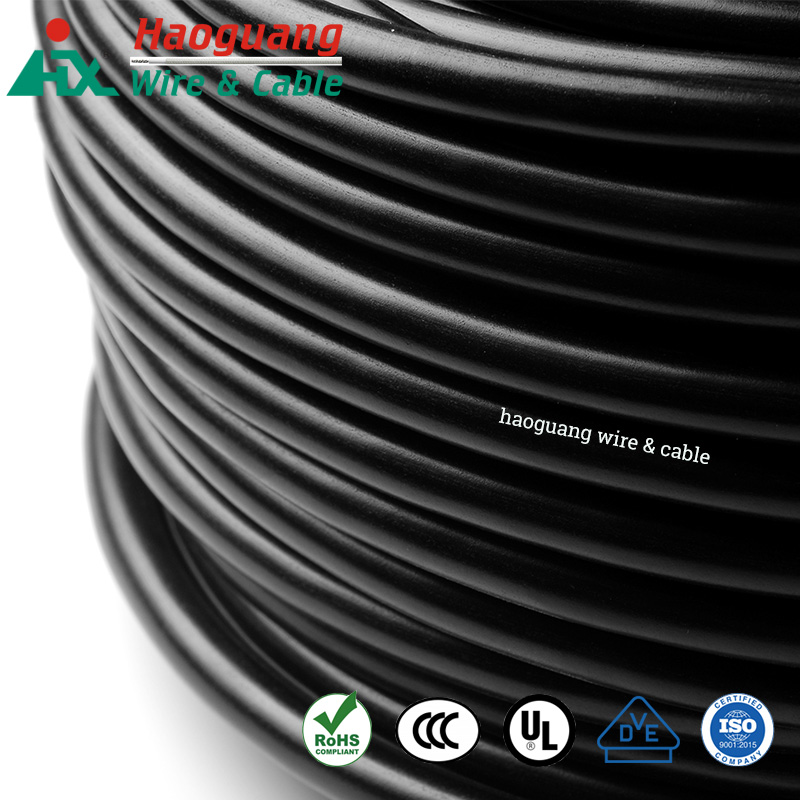

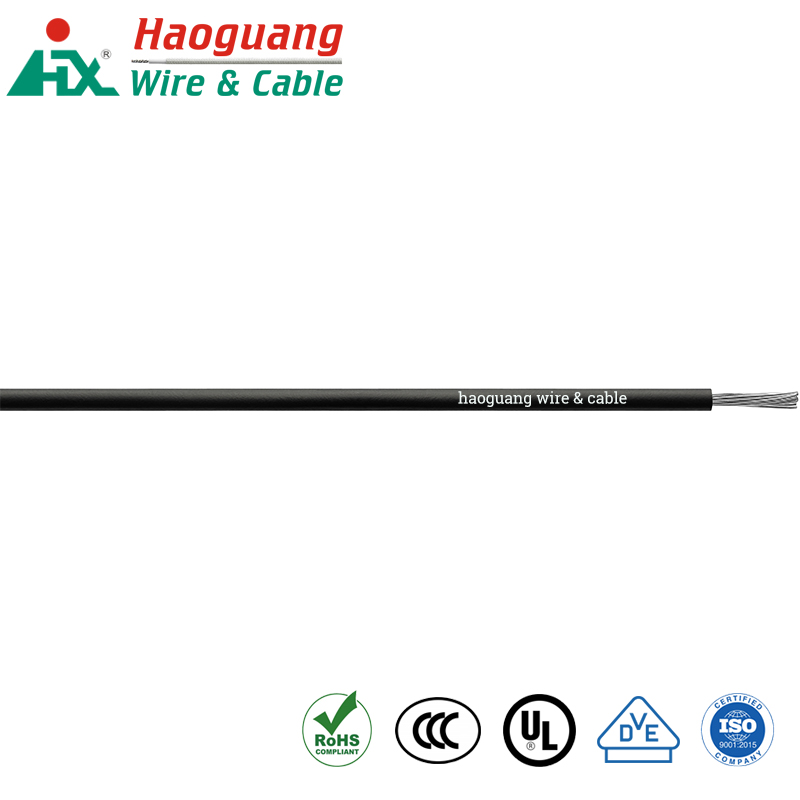

Haoguang UL 3321 Cross-linked PE Insulated Single Core Cable is designed for use in electric motor&generator,electronic,heating&cooling,lighting,switchgear and appliance applications.The insulation is irradiated cross-linked polyethylene. Rated for continuous use up to 150 ℃, voltage up to 600VAC,750VDC. RoHS compliant.
1.Product Introduction of UL 3321 Cross-linked PE Insulated Single Core Cable
Haoguang UL 3321 cross-linked PE insulated single core cable is often used in electric motor&generator,electronic,heating&cooling,lighting,switchgear,cooking equipment and appliance applications.RoHS compliant. UL 3321 Hook Up Wire’s XLPE insulation has excellent resistance to abrasion, deformation, cut-through and chemical attack.
2.Product Parameter (Specification) of UL 3321 Cross-linked PE Insulated Single Core Cable
Rated Voltage: 600VAC /750VDC
Rated Temperature: ＋150℃
Standard: UL758
File No.:E192545
|
Spec.
AWG |
Nominal Area
mm2 |
Structure of Conductor
No./mm |
Insulation Thickness
mm |
Overall Diameter
(mm) |
Conductor Resistance at 20 ℃ Max |
|
Ω／km |
|||||
|
24 |
0.205 |
12/0.15 |
0.76 |
2.2 |
94.2 |
|
7/0.20 |
|||||
|
22 |
0.324 |
18/0.15 |
0.76 |
2.4 |
59.4 |
|
7/0.254 |
|||||
|
20 |
0.519 |
28/0.15 |
0.76 |
2.5 |
36.7 |
|
7/0.30 |
|||||
|
18 |
0.823 |
26/0.20 |
0.76 |
2.8 |
23.2 |
|
7/0.39 |
|||||
|
16 |
1.31 |
42/0.20 |
0.76 |
3.1 |
14.6 |
|
28/0.25 |
|||||
|
7/0.495 |
|||||
|
14 |
2.08 |
41/0.254 |
0.76 |
3.6 |
8.96 |
|
7/0.62 |
3 Product Feature of the UL 3321 Cross-linked PE Insulated Single Core Cable
1) Materials: High precision non-oxygen tinned copper.
2) Insulation: Cross-linked polyethylene
3) XLPE= Low Smoke Zero Halogen, Low smoke halogen free.
4 Product detail of the UL 3321 Cross-linked PE Insulated Single Core Cable
1) Conditionally resistant to water oils,acids,alkali,Ozone.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation,cut-through.
4) RoHS compliant, UL listed.
5) Neither cracking at the high temperature, nor would turn hard in the cold.
6) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) What are the benefits of XLPE insulated cables ?
XLPE or Cross-linked polyethylene is a thermoset insulation material.Crosslinking polymers is a process which changes the molecular structure of the polymer chains so that they are more tightly bound together. Cross-linking the PE to become XLPE increases the temperature range of the insulation whilst maintaining the electrical properties
2) What certifications do you have?
Rohs, CE, CCC, UL, TUV,ISO9001.
3) Are you a manufactory?
Yes, our company is a professional wires and cables manufactory with many years of experience.
