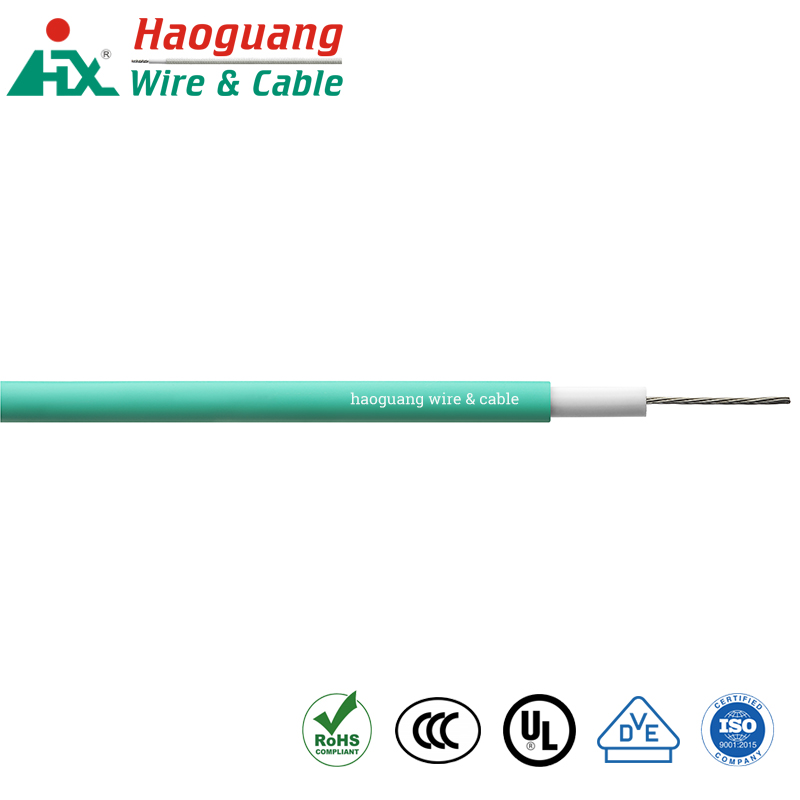

Haoguang UL 3239 high voltage silicone rubber single core cable has good capacities of high voltage receivers, it is suitable for the television receiver internal wiring. The PVC jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting. Silicone high voltage wire is durable to a variety of chemicals and oils.Rated voltages is 30000V. The spec from 12~26AWG.
1.Introduction of UL 3239 High Voltage Silicone Rubber Single Core Cable
Haoguang UL 3239 High Voltage Silicone Rubber Single Core Cable has good capacities of high voltage receivers, it is resistant to UV and Ozone. The PVC jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting. The PVC max temperature is 105℃. flexible performance and RoHs compliance, spec from 12-26AWG.
Application: Television receiver internal wire,battery wires,Led lighting and other where wire stay in constant movement.
2.Parameter (Specification) of UL 3239 High Voltage Silicone Rubber Single Core Cable
Rated Voltage: 30000V
Rated Temperature: 105℃
Standard: UL758
|
Spec. |
Insulation Nominal Thickness |
Insulation Min. Thickness |
Insulator Diameter |
Jacket Nominal Thickness |
Outside Diameter |
|
AWG |
mm |
mm |
mm |
mm |
mm |
|
12# |
1.80 |
1.6 |
6.07 |
0.69 |
7.44 |
|
14# |
1.80 |
1.6 |
5.58 |
0.69 |
6.95 |
|
16# |
1.80 |
1.6 |
5.19 |
0.69 |
6.56 |
|
18# |
1.80 |
1.6 |
4.88 |
0.69 |
6.25 |
|
20# |
1.80 |
1.6 |
4.64 |
0.69 |
6.0 |
|
22# |
1.80 |
1.6 |
4.44 |
0.69 |
5.81 |
|
24# |
1.80 |
1.6 |
4.29 |
0.69 |
5.66 |
|
26# |
1.80 |
1.6 |
4.17 |
0.69 |
5.53 |
3.Feature of the UL 3239 High Voltage Silicone Rubber Single Core Cable
1) Conductor: Bare copper wire, Tin-coated copper wire.
2) Insulation: Silicone rubber.
3) Jacket: PVC.
4.Detail of the UL 3239 High Voltage Silicone Rubber Single Core Wire
1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation.
4) RoHS compliant.
5) High temperature/low temperature resistance.
6) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) Why certain cables have braiding?
The design of the crossing, interwoven wires allows for bending and stretching of the braiding without buckling, folding or kinking in the way the tapes might do as a result of a flexible application.When applied as a covering to the cable a braid can also serve to provide increased protection against hot surfaces, offering resistance to abrasion and cutting.
2) Where is your factory located?
Add: No.226 Changing Road Xizhou,Xiangshan County,Zhejiang,China.
3) Is the quality of UL 3239 High Voltage Silicone Rubber Single Core Cable guaranteed?
Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
