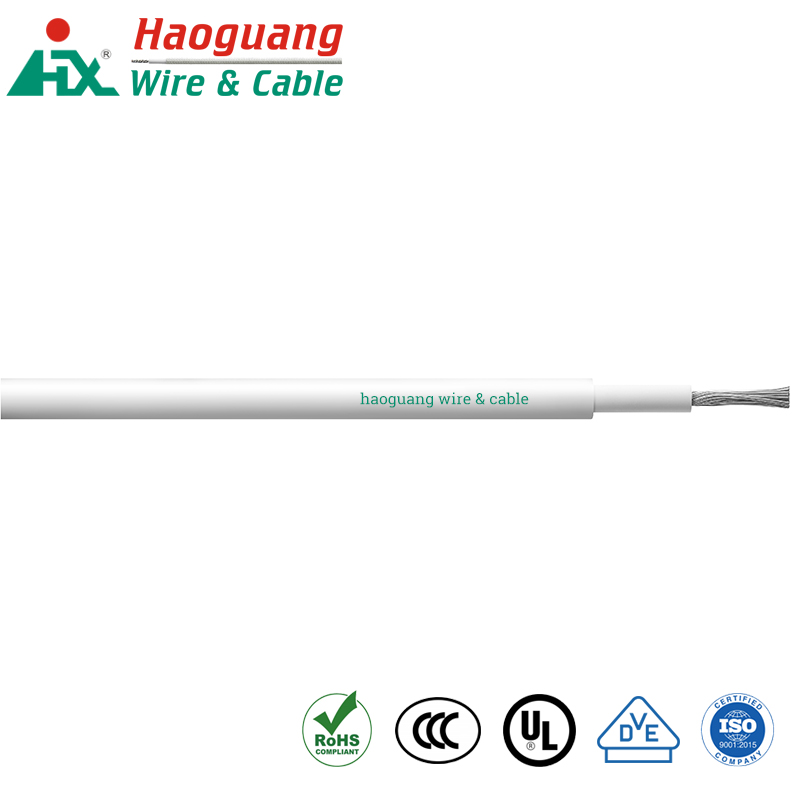

Haoguang VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable is produced for high temperature environments with improved electrical and mechanical properties. It’s suitable for electrical household appliance,lightings.It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality. Welcome to inquiry.
1.Introduction of VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable
Haoguang VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable is produced for high temperature environments with improved electrical and mechanical properties. It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality.
Application:
This wire are suitable for inner wiring of lighting electrical equipment, heating elements, hot-rolling mills, textile machines,barbecue machine,burners,furnaces,electrical household appliances at the high temperature conditions.
2.Parameter (Specification) of VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable
Rated Voltage: 300V / 500V
Rated Temperature: from -60℃ to 180℃
Standard: DIN EN50525
|
Conductor |
Insulation conductor |
Electrical Characteristic |
|||
|
Section |
Conductor construction |
Insulation thickness |
Outer Cover Thickness |
Overall Diameter |
Conductor Resistance at 20 ℃ Max |
|
(mm) |
(mm) |
Ω／km |
|||
|
0.5 |
28/0.15 |
0.6 |
0.8 |
3.8 |
40.1 |
|
0.75 |
24/0.2 |
0.6 |
0.8 |
4 |
26.7 |
|
1 |
32/0.2 |
0.6 |
0.9 |
4.35 |
20.7 |
|
1.5 |
48/0.2 |
0.8 |
1.0 |
5.2 |
13.7 |
|
2.5 |
51/0.25 |
0.9 |
1.1 |
6.1 |
8.21 |
3.Feature of the VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable
1) Packed with UL Label and Tag.
2) Halogen free low smoke.
3) Can be used in -60℃ to 180℃.
4) Covering: silicone rubber sheath.
5) Insulation: silicone rubber.
6) Conductor: Bare copper wire, Tin-coated copper wire.
7) Excellent chemical resistant.
8) The wire is comply with Rohs2.0 Directive and the 201 SVHC under Regulation of REACH.
4.Detail of the VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable
1)The cable conductor type is standard 99.99% OFC (Oxygen free copper) and tin plated copper.
2) Outstanding abrasion resistance.
3) Oil and corrosion resistance.
4) Standard sizes and custom color available upon request.
5) Brand: Haoguang
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last.
2) Is the quality of VDE H05SS-K Silicone Rubber Double Insulated Single Core Cable guaranteed?
Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
3) Are samples free shipping?
Sorry, it should be on customer side.
