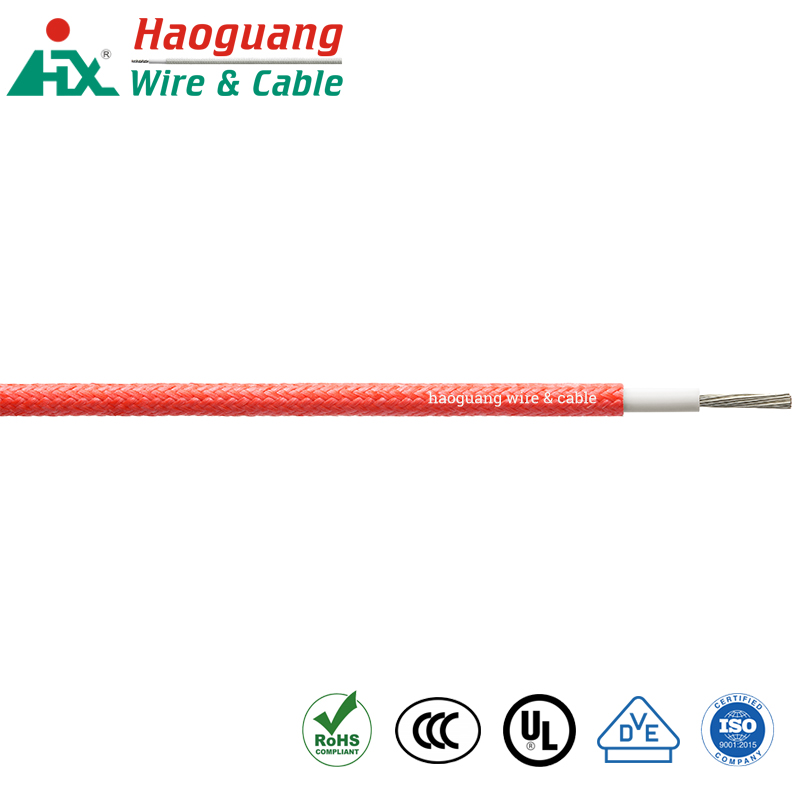

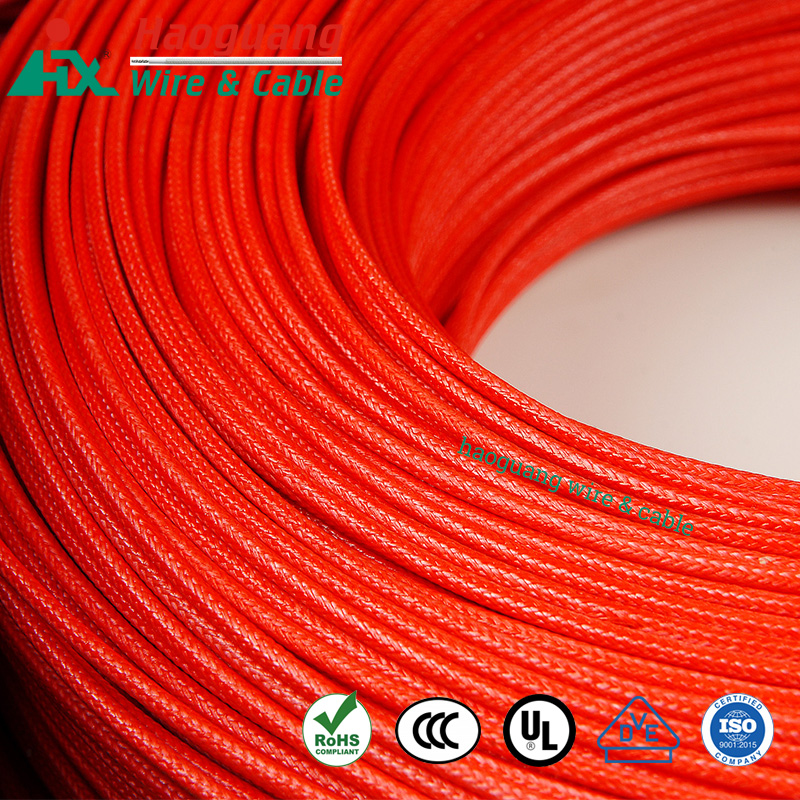

Haoguang Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire is produced for high temperature environments with improved electrical and mechanical properties,suitable for lights burners,barbecue machine etc. It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality. Wellcome to inquiry.
1.Introduction of Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire
Haoguang Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire is produced for high temperature environments with improved electrical and mechanical properties. It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality.
Application:
This wire are suitable for inner wiring of lighting electrical equipment, heating elements, hot-rolling mills, textile machines,barbecue machine,burners,furnaces,electrical household appliances at the high temperature conditions.The wire is comply with Rohs2.0 Directive and the 201 SVHC under Regulation of REACH.
2.Parameter (Specification) of Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire
Rated Voltage: 300V / 500V
Rated Temperature: from -60℃ to 180℃
Standard: DIN EN50525
|
Conductor |
Insulation conductor |
Electrical Characteristic |
||||
|
Section mm² |
Conductor construction NO. / mm |
Insulation thickness (mm) |
Fiber glass thickness （mm） |
Overall Diameter (mm) |
Conductor Resistance at 20 ℃ Max |
|
|
0.5 |
28/0.15 |
0.6 |
0.15 |
2.6 |
3.3 |
40.1 |
|
16/0.20 |
||||||
|
0.75 |
24/0.2 |
0.6 |
0.15 |
2.8 |
3.5 |
26.7 |
|
42/0.15 |
||||||
|
1.0 |
32/0.2 |
0.6 |
0.15 |
2.9 |
3.7 |
20.0 |
|
1.5 |
48/0.2 |
0.7 |
0.2 |
3.4 |
4.2 |
13.7 |
|
2.5 |
50/0.25 |
0.8 |
0.2 |
4.0 |
5.0 |
8.21 |
|
4.0 |
56/0.30 |
0.8 |
0.2 |
4.5 |
5.6 |
5.09 |
|
6.0 |
84/0.30 |
0.8 |
0.25 |
5.0 |
6.2 |
3.39 |
|
10.0 |
84/0.40 |
1.0 |
0.25 |
6.2 |
7.8 |
1.95 |
|
16.0 |
126/0.40 |
1.0 |
0.25 |
7.3 |
9.1 |
1.24 |
3.Feature of the Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire
1) Halogen free.
2) Can be used in -60℃ to 180℃.
3) Covering: Being braided with glass fiber, increase mechanical resistance of conductor.
4) Insulation: silicone rubber.
5) Conductor: Bare copper wire, Tin-coated copper wire.
6) Excellent chemical resistant.
4.Detail of the Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire
1)The cable conductor type is standard 99.99% OFC (Oxygen free copper) and tin plated copper.
2) Outstanding abrasion resistance.
3) Oil and corrosion resistance.
4) Standard sizes and custom color available upon request.
5) Brand: Haoguang.
5 Packaging & Delivery
1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated.
2) Port: Ningbo
Delivery: By Sea, By Air, By express.
6 FAQ:
1) Are you factory or trading company?
We are factory who has more than 25 years manufacturing experiences.
2) Is the quality of Braided Rubber VDE H05SJ-K High Temperature Hook-up Wire guaranteed?
Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
3) Are samples free shipping?
Sorry, it should be on customer side.
7 FACTORY :
