Product Description

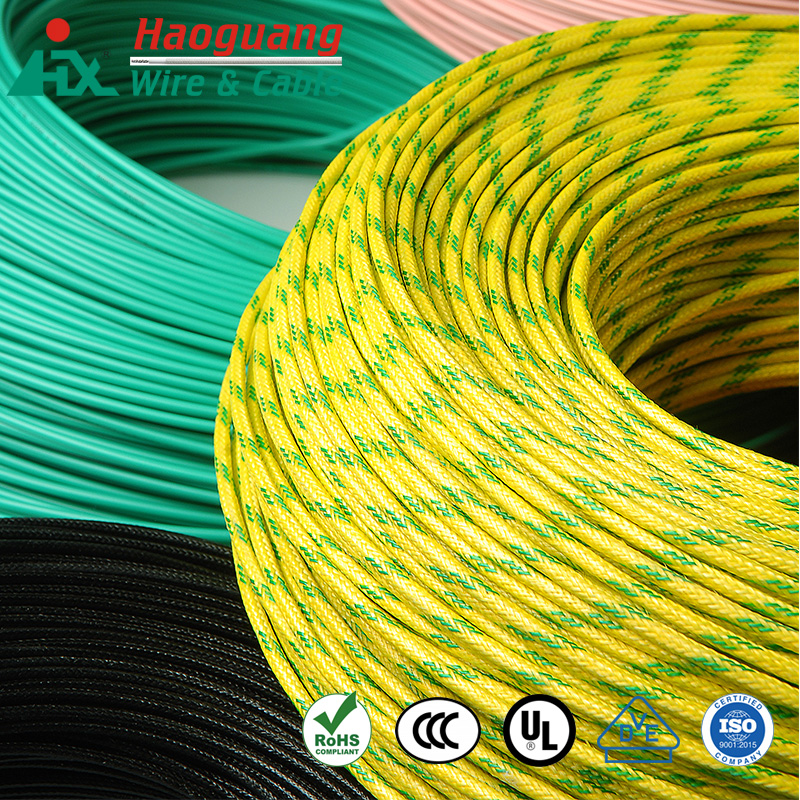

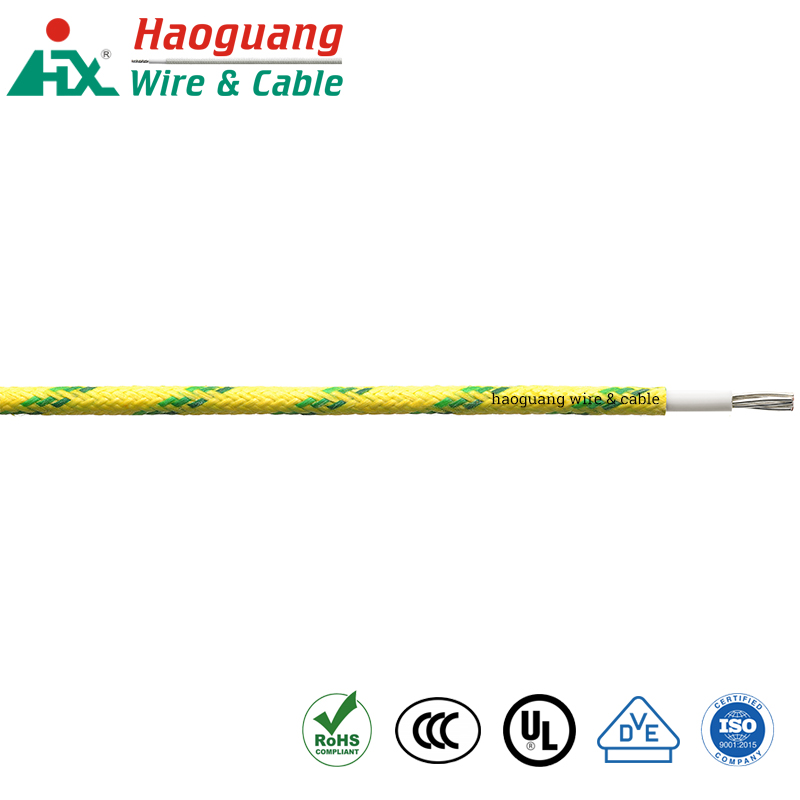

1.Introduction of UL 3122 Fiber Braided Silicone Rubber High Temperature Hook-up Wire

This UL 3122 Fiber Braided Silicone Rubber High Temperature Hook-up Wire is ideal leading wire for appliance internal use and lightings. The silicone rubber insulation and glass fiber ensure the cable excellent heating resistant and anti-wear performance. Extra insulation is provided to make these Fiber glass cables more strength.

Application:
Widely applied for electronics,household appliances,lighting equipment,thermal electric instruments and more at the high temperature conditions.The cable is comply with Rohs2.0 Directive and the 201 SVHC under Regulation of REACH.

2.Parameter (Specification) of UL 3122 Fiber Braided Silicone Rubber High Temperature Hook-up Wire

Rated Voltage: 300V
Rated Temperature: from -60℃ to 200℃
Standard: UL758

Spec AWG	Nominal Area mm2	Structure of Conductor NO./mm	Insulation Thickness mm	Outer Diameter mm	Conductor Resistance at 20 ℃ Max Ω／km
24	0.205	1/0.52 TC	0.38	1.7	94.2
22	0.324	1/0.65TC	0.38	1.9	59.4
20	0.519	1/0.813 TC	0.38	2.1	36.7
18	0.823	7/0.39TC	0.38	2.35	23.2
16	1.31	7/0.49 TC	0.38	3.75	14.6
14	2.08	7/0.62TC	0.45	3.3	8.96
12	3.31	19/0.495TC	0.50	3.9	5.64

3.Feature of the UL 3122 Fiber Braided Silicone Rubber High Temperature Hook-up Wire

1) Packed with UL Label and Tag.
2) Pass air oven test 210℃ 60 days.
3) Can be used in -60℃ to 200℃.
4) Jacket: Being braided with glass fiber, covered with liquid silicone, the cable is very durable.
5) Insulation: silicone rubber.
6) Conductor: Tinned copper wire.
7) Excellent chemical resistant.

4.Detail of the UL 3122 Fiber Braided Silicone Rubber High Temperature Hook-up Wire

1)The cable is made from Tinned Copper Wire which is pure Oxygen free copper. According the UL standards, the single tinned copper wire diameter is not less than 0.38mm.
2) The insulation thickness is uniform, easy to peel and cut.
3) Heat radiation resistance, cold resistance, acid and alkali resistance.
4) Full color range. White, Black, Blue, Brown, Red, Green, Yellow/Green, Yellow colors, and others.
5) Brand: Haoguang.

5 Packaging & Delivery

1) Packaging Details:

It is determined by the quantity and requirements you purchase. Can be negotiated.

2) Port: Ningbo

Delivery: By Sea, By Air, By express.

6 FAQ:

1) How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock.we can offer the samples immediately. If we don’t have the exact model you need, maybe we will send you similar sample if you accept. If you couldn’t accept, it will need 3~5 days to arrange sample developing.

2) Does your company accept OEM production?

Yes.

3) What is your terms of delivery?

We usually accept FOB, FCR,CIF etc.
