Product Description

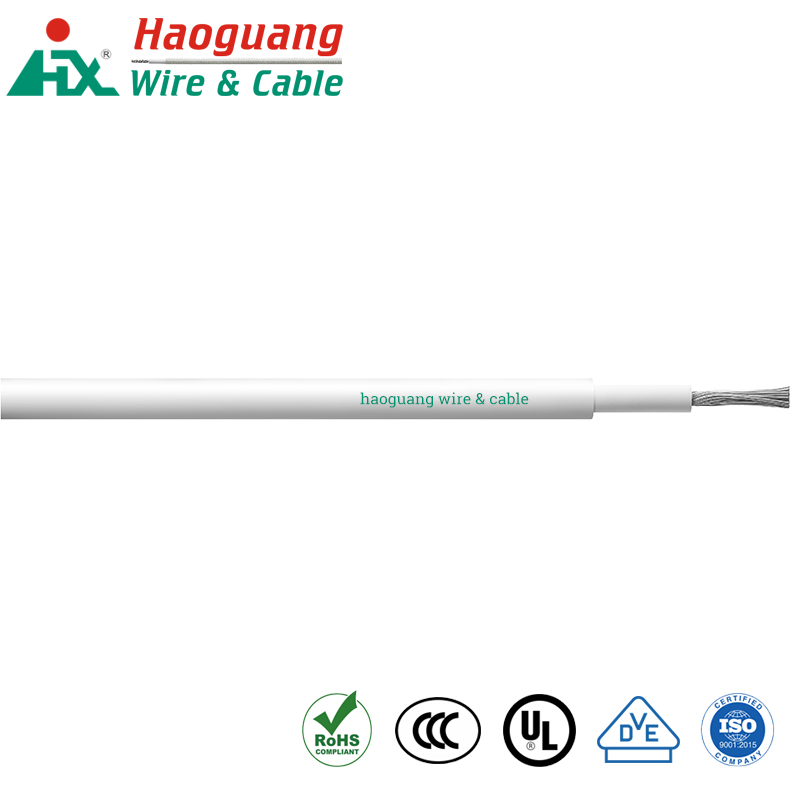

1.Introduction of VDE H05SS-K Silicone Rubber High Temperature Hook-up Wire

Haoguang VDE H05SS-K Silicone Rubber High Temperature Hook-up Wire is produced for high temperature environments with improved electrical and mechanical properties. It has outstanding abrasion resistance and excellent chemical resistance. The material is Eco-friendly and high quality.

Application:
This wire are suitable for inner wiring of lighting electrical equipment, heating elements, hot-rolling mills, textile machines,barbecue machine,burners,furnaces,electrical household appliances at the high temperature conditions.

2.Parameter (Specification) of VDE H05SS-K Silicone Rubber High Temperature Hook-up Wire

Rated Voltage: 300V / 500V
Rated Temperature: from -60℃ to 180℃
Standard: DIN EN50525

Conductor		Insulation conductor			Electrical Characteristic
Section mm²	Conductor construction NO. / mm	Insulation thickness (mm)	Outer Cover Thickness	Overall Diameter	Conductor Resistance at 20 ℃ Max
Section mm²	Conductor construction NO. / mm	Insulation thickness (mm)	(mm)	(mm)	Ω／km
0.5	28/0.15	0.6	0.8	3.8	40.1
0.75	24/0.2	0.6	0.8	4	26.7
1	32/0.2	0.6	0.9	4.35	20.7
1.5	48/0.2	0.8	1.0	5.2	13.7
2.5	51/0.25	0.9	1.1	6.1	8.21

3.Feature of the VDE H05SS-K Silicone Rubber High Temperature Hook-up Wire

1) Packed with UL Label and Tag.
2) Halogen free low smoke.
3) Can be used in -60℃ to 180℃.
4) Covering: silicone rubber sheath.
5) Insulation: silicone rubber.
6) Conductor: Bare copper wire, Tin-coated copper wire.
7) Excellent chemical resistant.
8) The wire is comply with Rohs2.0 Directive and the 201 SVHC under Regulation of REACH.

4.Detail of the VDE H05SS-K Silicone Rubber High Temperature Hook-up Wire

1)The cable conductor type is standard 99.99% OFC (Oxygen free copper) and tin plated copper.
2) Outstanding abrasion resistance.
3) Oil and corrosion resistance.
4) Standard sizes and custom color available upon request.
5) Brand: Haoguang

5 Packaging & Delivery

1) Packaging Details:

It is determined by the quantity and requirements you purchase. Can be negotiated.

2) Port: Ningbo

Delivery: By Sea, By Air, By express.

6 FAQ:

1) Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last.

2) Is the quality of VDE H05SS-K Silicone Rubber High Temperature Hook-up Wire guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.

3) Are samples free shipping?

Sorry, it should be on customer side.
